[챕터 2-4-1] 프래그먼트

결과화면



화면전환 버튼을 누르면 메뉴 프래그먼트 화면 띄움

---

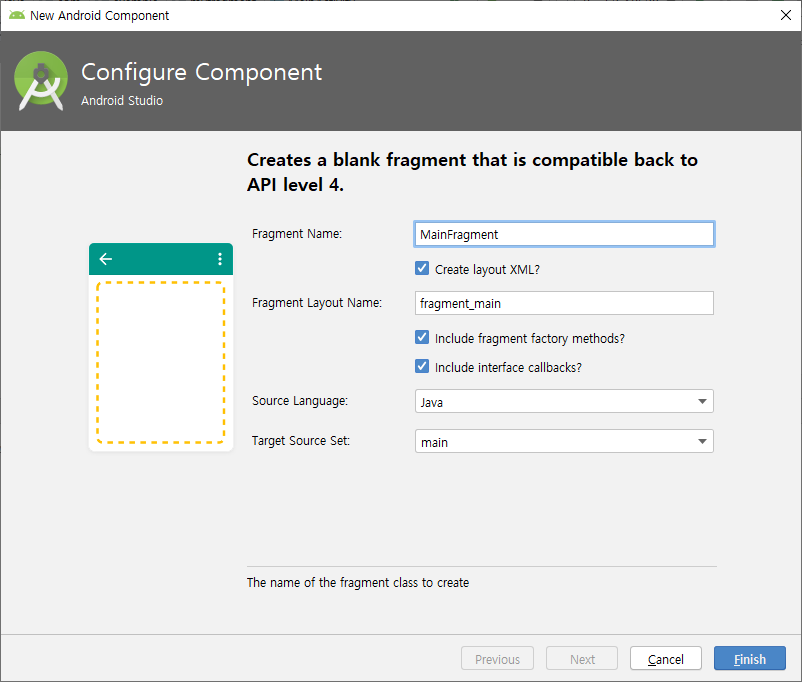

프래그먼트 생성



---

프로그먼트 명 : MainFragment





---

---

---



---

MainFragment.java



package com.example.myfragment;

import android.content.Context;
import android.net.Uri;
import android.os.Bundle;

import androidx.fragment.app.Fragment;

import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;


public class MainFragment extends Fragment {


    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container,
                             Bundle savedInstanceState) {
        // Inflate the layout for this fragment
        return inflater.inflate(R.layout.fragment_main, container, false);
    }

}



---

MainFragment.java





---

activity_main.xml



---

activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/container"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MainActivity" >

    <fragment
        android:id="@+id/mainFragment"
        android:layout_width="match_parent"
        android:layout_height="match_parent"
        android:name="com.example.myfragment.MainFragment" />

</FrameLayout>



---





---

MainActivity.java 복사해서

MenuFragment.java 생성





fragment_main.xml 복사해서

fragment_menu.xml 생성



---

---



package com.example.myfragment;

import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;

import androidx.fragment.app.Fragment;


public class MenuFragment extends Fragment {

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
        return inflater.inflate(R.layout.fragment_menu, container, false);
    }
}



---

MainFragment.java

package com.example.myfragment;

import android.content.Context;
import android.net.Uri;
import android.os.Bundle;

import androidx.fragment.app.Fragment;

import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.Button;


public class MainFragment extends Fragment {

    @Override
    public View onCreateView(LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
        ViewGroup rootView = (ViewGroup) inflater.inflate(R.layout.fragment_main, container, false);
        Button button = rootView.findViewById(R.id.button);
        button.setOnClickListener(new View.OnClickListener() {
            @Override
            public void onClick(View v) {
                MainActivity mainActivity = (MainActivity) getActivity();
                mainActivity.onFragementChanged(1);
            }
        });

        return rootView;
    }

}



---
